MODEMS
Reliable, secure, and easy-to-use Teltonika Networks modems for industrial, enterprise, IoT, and M2M applications.

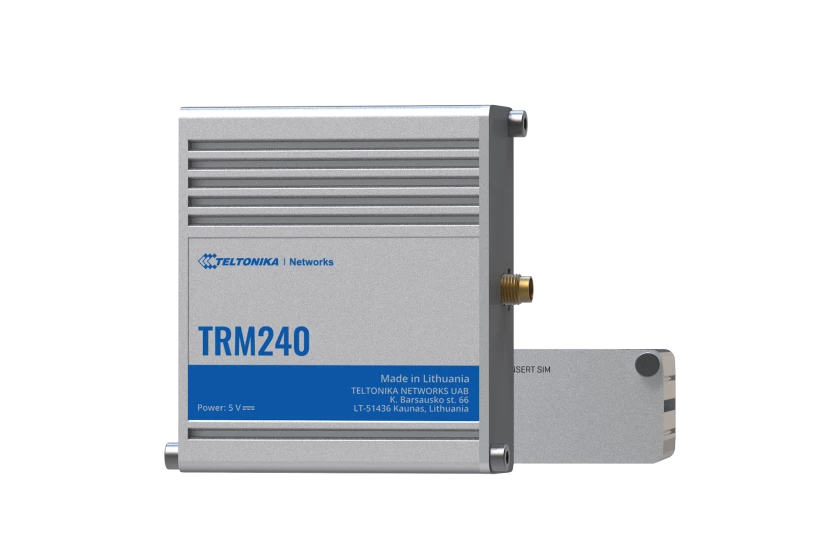

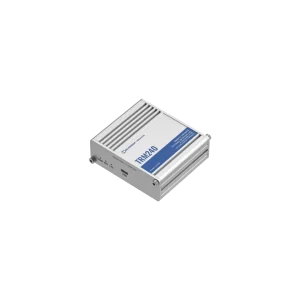

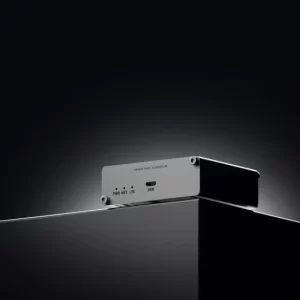

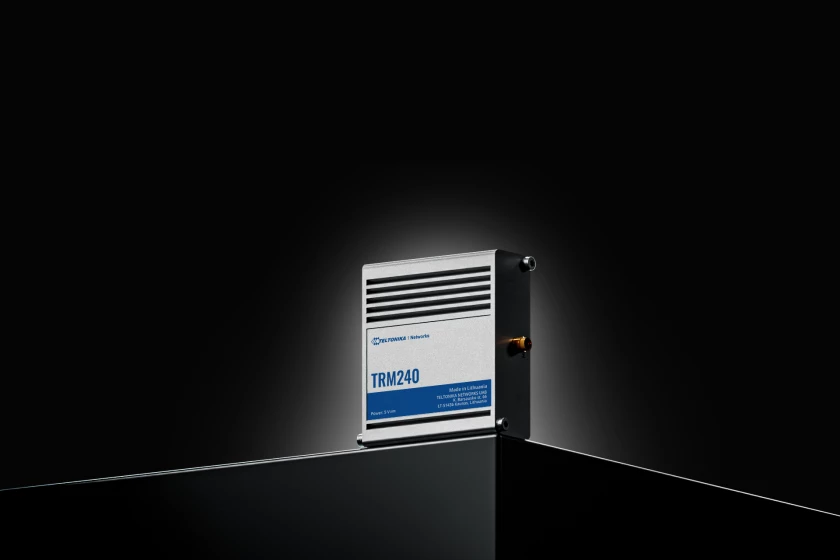

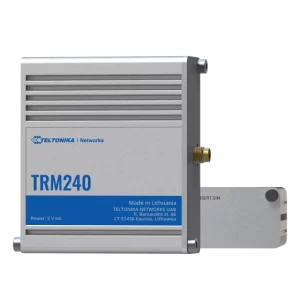

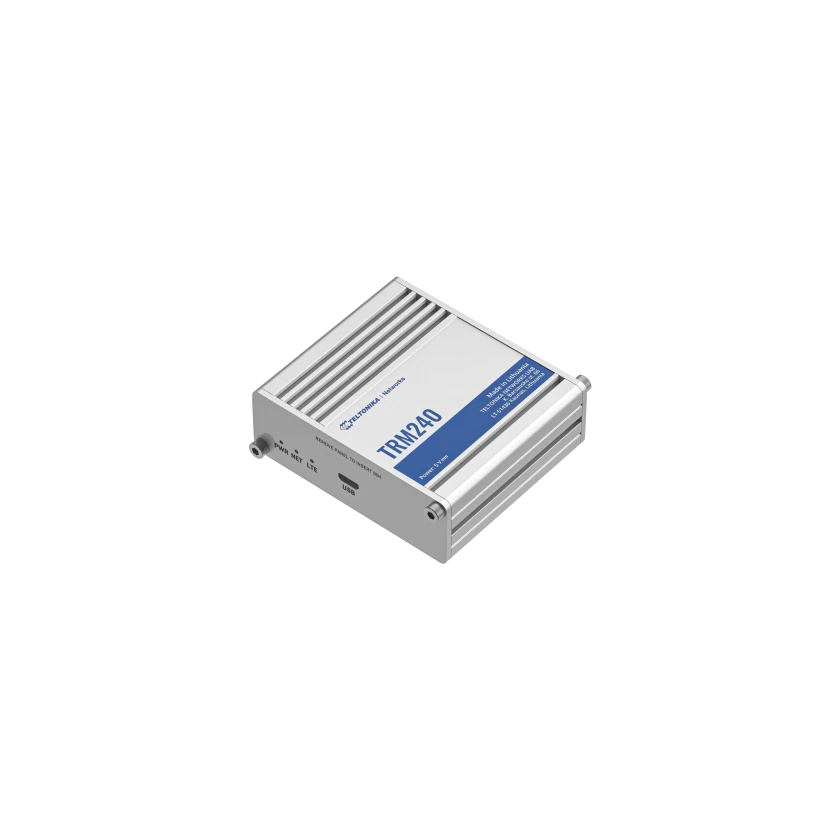

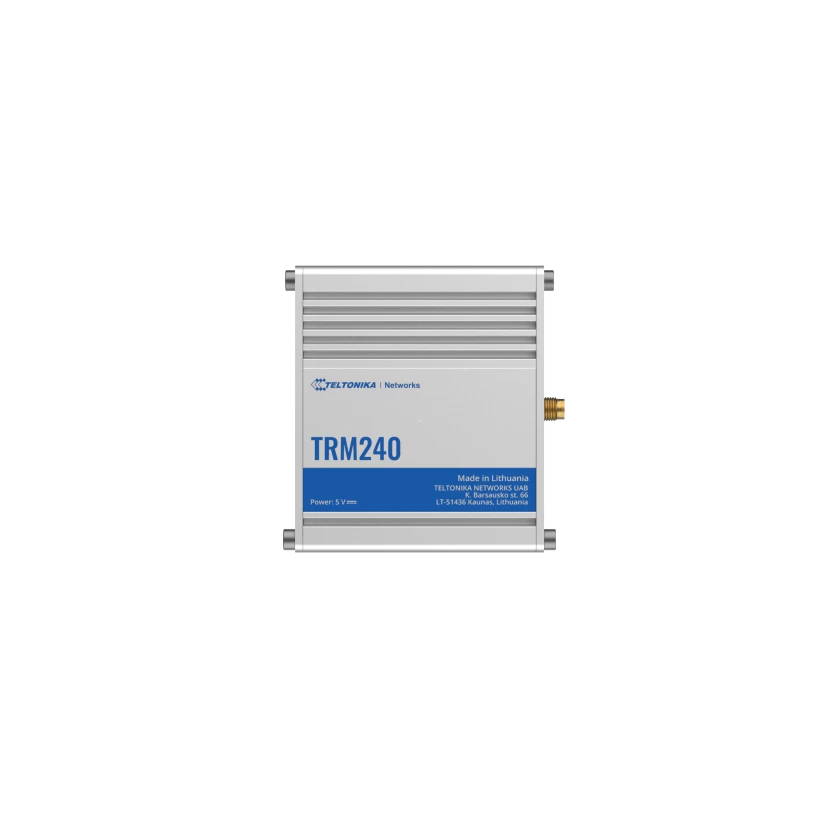

TRM240
4G/LTE (Cat1)
USB port
SMA Antenna
QSG VIDEO
FEATURES
MOBILE
Mobile module
G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
POWER
Connector
microUSB
Input voltage range
5V – powered via microUSB
Power consumption
3.2 W Max
PHYSICAL INTERFACES
Status LEDs
1 x Power LED, 1 x Network LED, 1 x LTE LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1x microUSB
Antennas
1 x SMA for LTE
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
TRM SOFTWARE
Management Software
Windows Connection Manager (NDIS driver)
USB Driver
Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver
Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver
Windows 7/8/8.1/10
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
Linux Driver
3.x (3.4 and later)/4.1~4.14

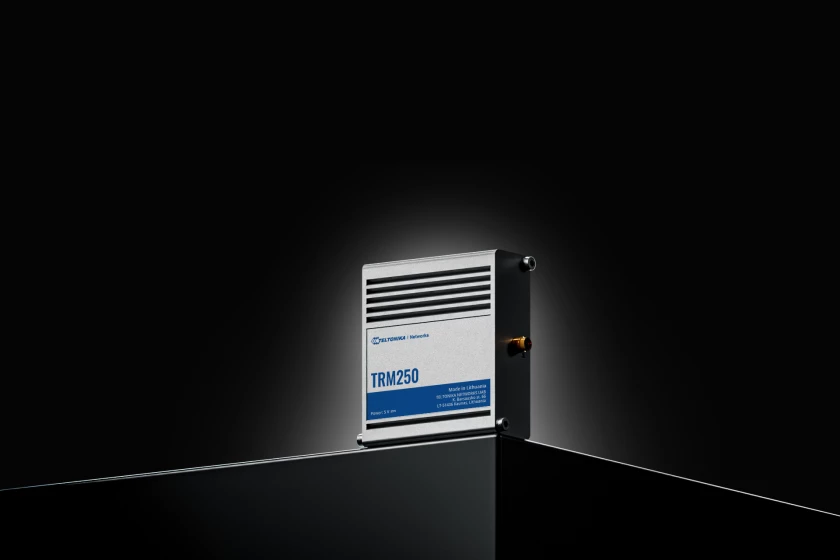

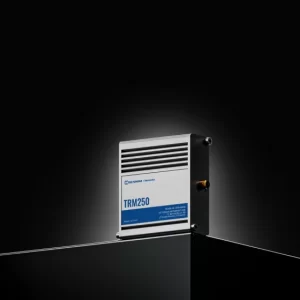

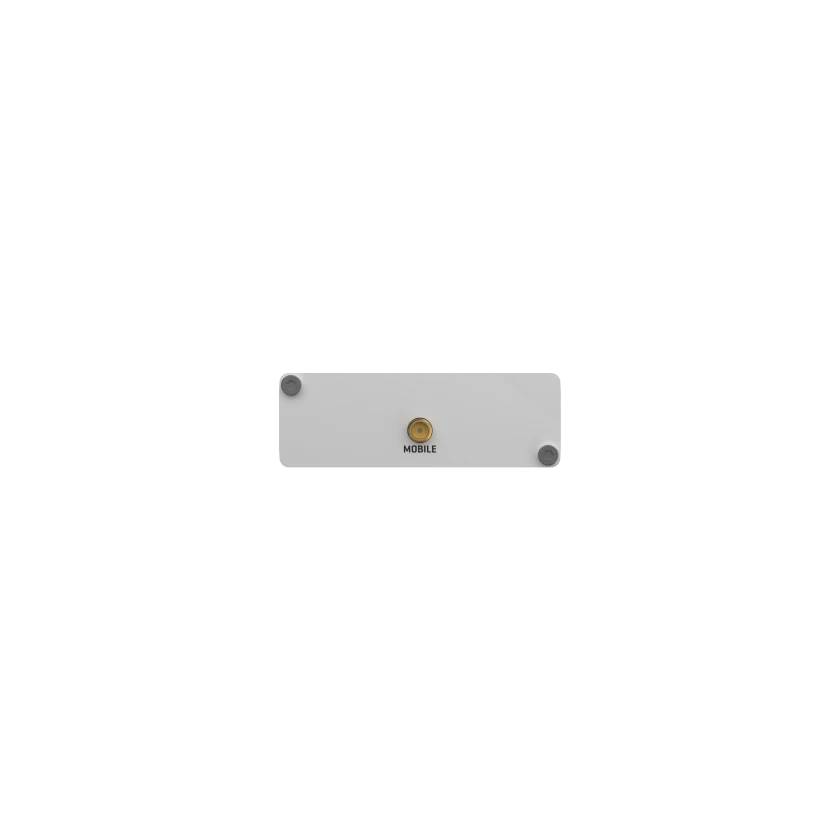

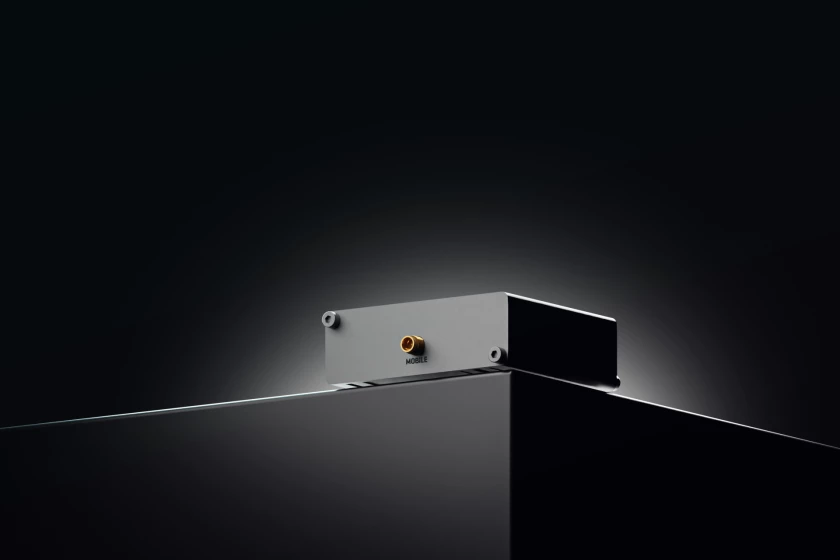

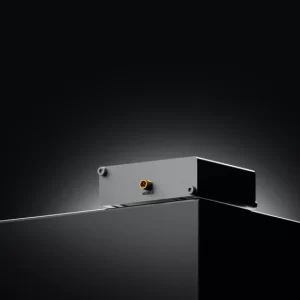

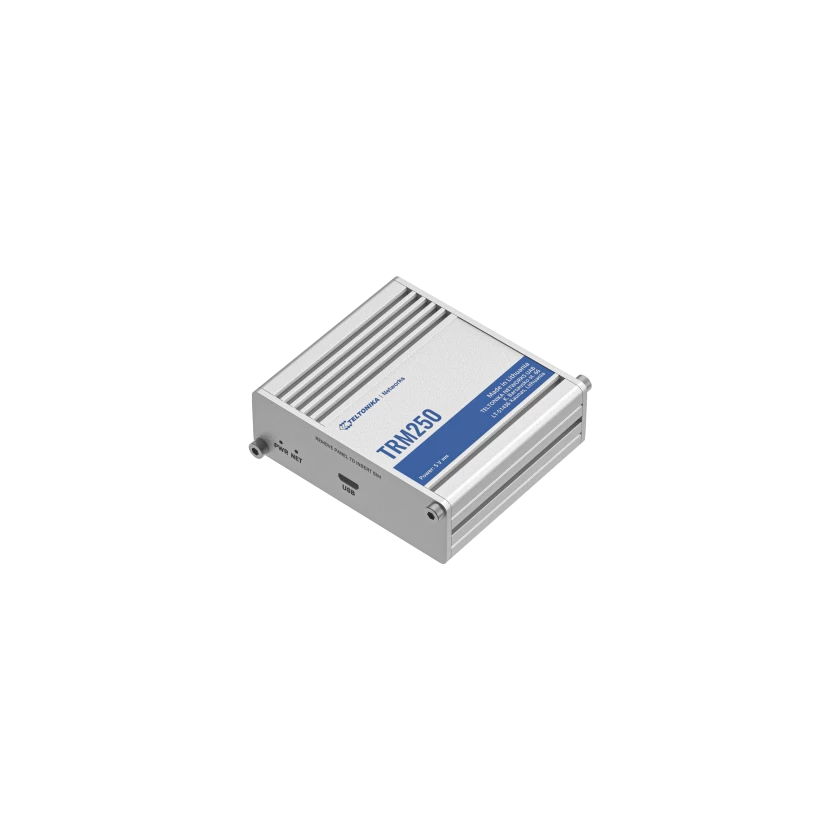

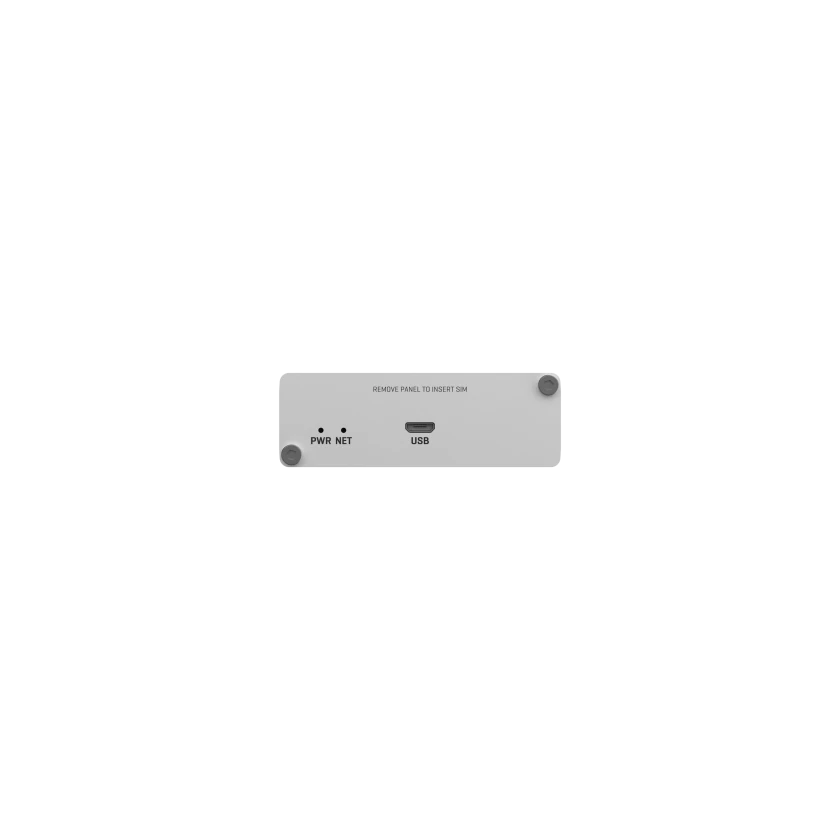

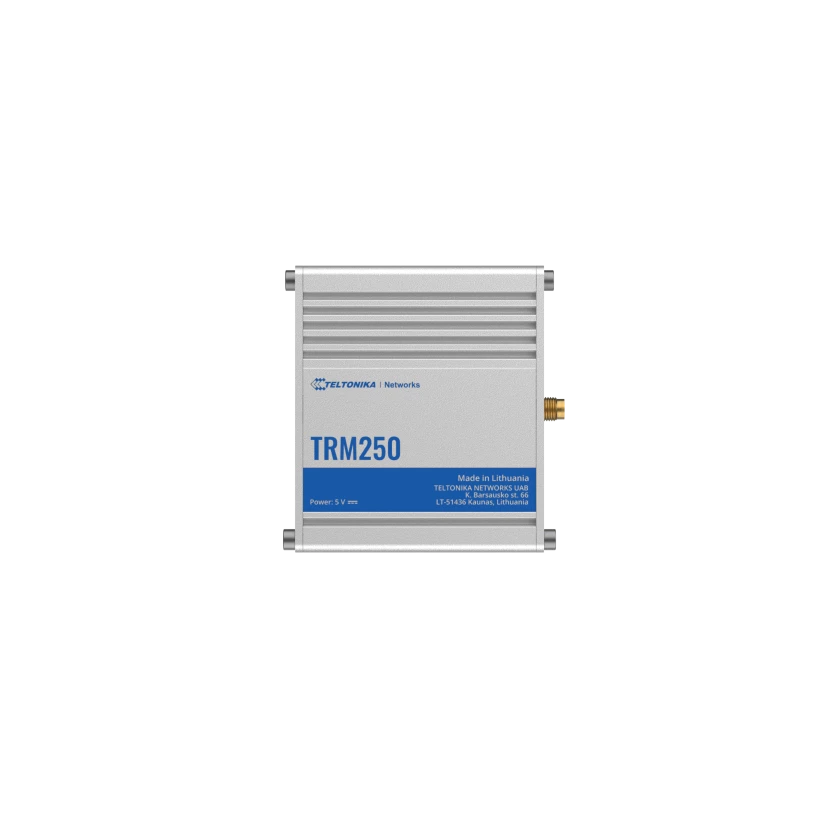

TRM250
4G/LTE (Cat M1)
NB-IoT
SMA Antenna
QSG VIDEO
FEATURES
MOBILE
Mobile module
LTE (Cat M1) / NB-IoT / EGPRS
POWER
Connector
microUSB
Input voltage range
5V – powered via microUSB
Power consumption
3.6 W Max
PHYSICAL INTERFACES
Status LEDs
1 x Power LED, 1 x Network LED, 1 x LTE LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1x microUSB
Antennas
1 x SMA for LTE
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
PHYSICAL SPECIFICATION
Casing material
Aluminum housing
Weight
130 g
Mounting options
DIN rail, Flat surface
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
TRM SOFTWARE
Management Software
Windows Connection Manager (NDIS driver)
USB Driver
Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
RIL Driver
Android 4.x/5.x/6.x/7.x/8.x
NDIS Driver
Windows 7/8/8.1/10
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
Linux Driver
3.x (3.4 and later)/4.1~4.14
