On-line UPS

Supreme level of UPS protection

These on-line units take the incoming voltage (AC), rectify it (AC-DC), and down convert it to the battery voltage (DC) of the UPS. It then filter it, re-invert it (DC-AC) and up-convert it to the appropriate output voltage for the unit. The output voltage is always rock steady and the sine wave is always pure.

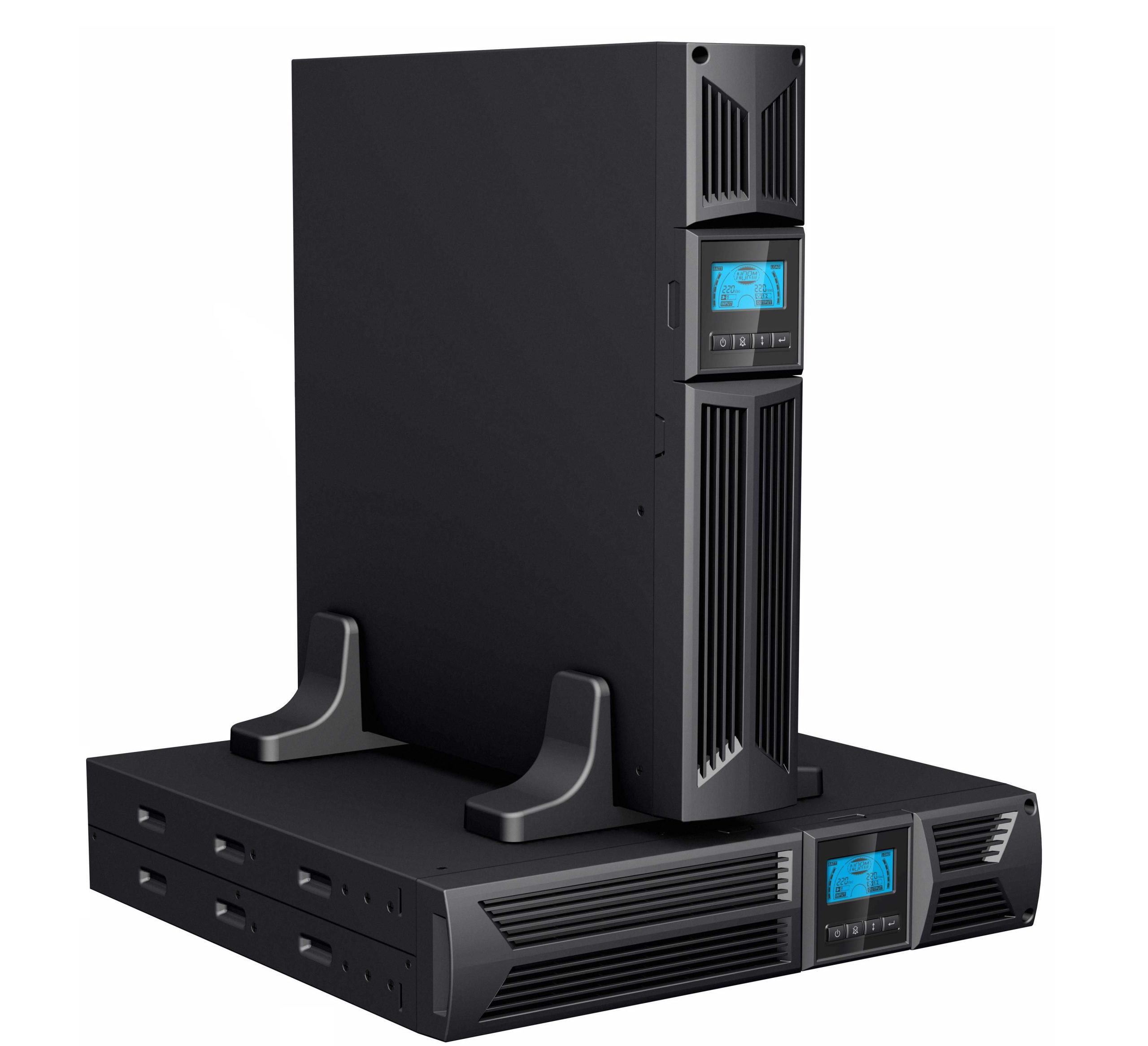

RACKMOUNT/TOWER Models

Model Name	TTN-V 1000 + RT	TTN-V 2000 + RT	TTN-V 3000 + RT
Voltage Capacity	1000VA/900W	2000VA/1800W	3000VA/2700W
Back-up Time	5 mins back-up time	5 mins back-up time	5 mins back-up time
	N/A	Slider Kit Included
Features	• Double Online Conversion • High power density rack-tower • Wide input range	• Multiple Communication Ports • LCD Display • Single phase with ground

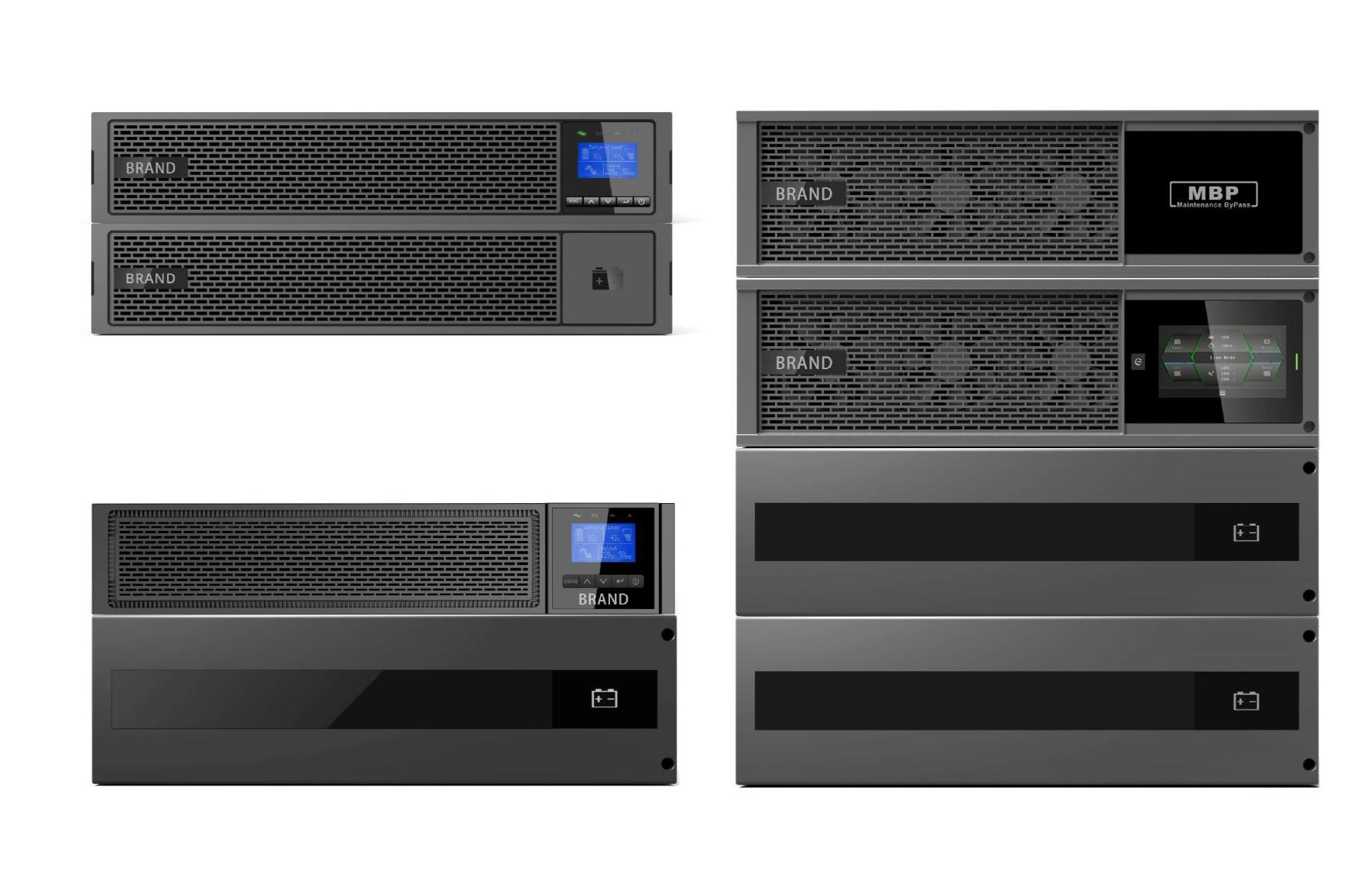

UNITY-IOT

Model Name	TTN-V 1000 RT Unity IOT	TTN-V 2000 RT Unity IOT	TTN-V 3000 RT Unity IOT
Voltage Capacity	1000VA/1000W	2000VA/2000W	3000VA/3000W
Back-up Time	3.0min 100% load 12.2min 50% load	3.3min 100% load 12.9min 50% load	2.5min 100% load 9.3min 50% load
Features:	• True double-conversion design • Real PF 1 can provide more power in same space • High efficiency results in energy saving • Adjustable charging current • Flexible battery configuration • Optimized changing method to expand battery life time	• True double-conversion design • Real PF 1 can provide more power in same space • High efficiency results in energy saving • Adjustable charging current • Flexible battery configuration • Optimized changing method to expand battery life time	• True double-conversion design • Real PF 1 can provide more power in same space • High efficiency results in energy saving • Adjustable charging current • Flexible battery configuration • Optimized changing method to expand battery life time
