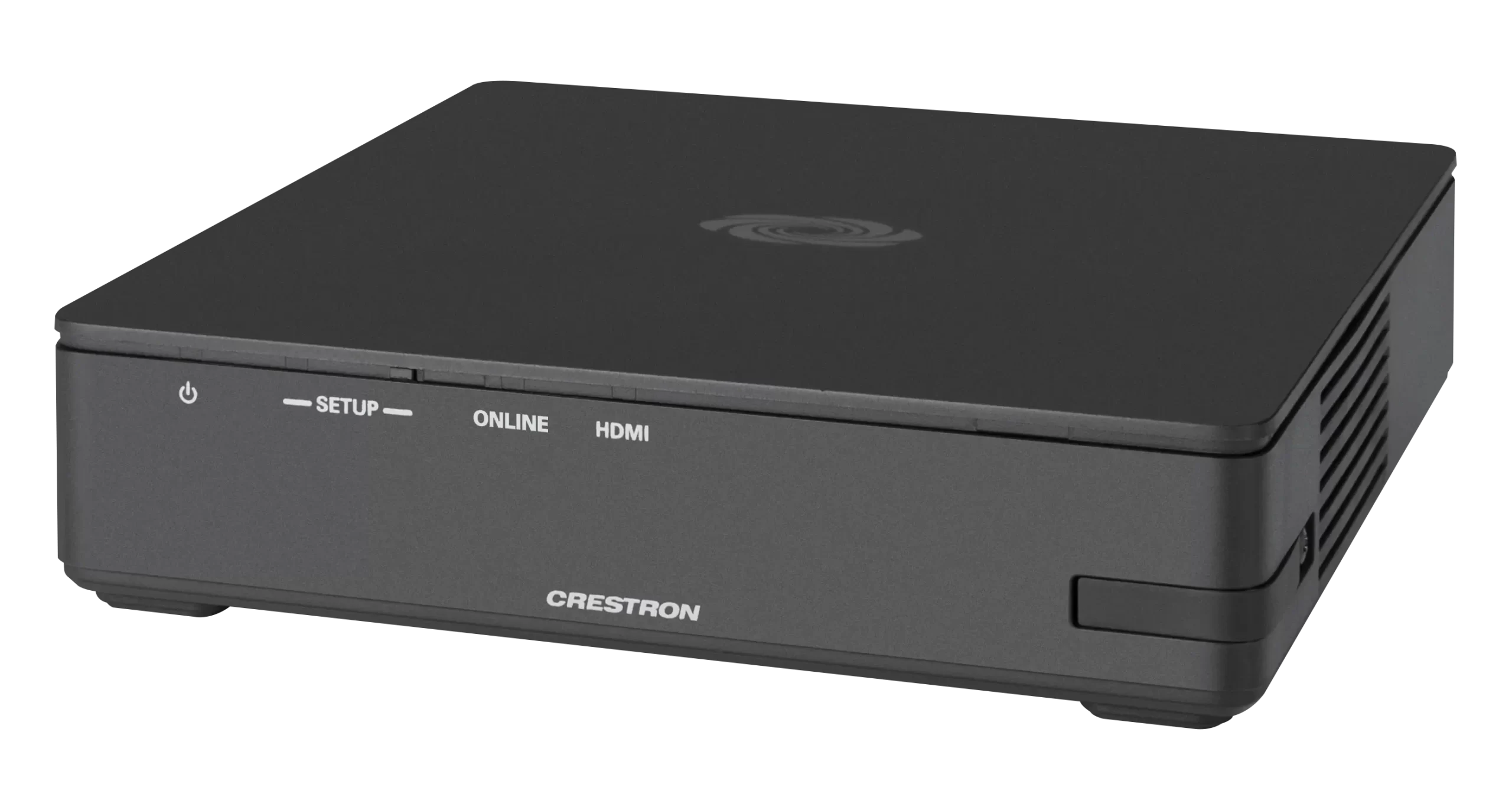

AM-3100-WF
AirMedia® Receiver 3100 with Wi‑Fi® Network Connectivity
The AirMedia® Receiver 3100 (AM‑3100‑WF) enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment.
Specifications
Communications
Ethernet
100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS3, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant
Wi-Fi
Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz & 5 GHz);
Up to 100 ft (30 m) range at 80 Mbps, subject to site‑specific conditions
AirMedia
Via Ethernet: IPv4, mDNS, TLS, AES1;
Via wireless access point: IEEE 802.11/b/g/n/ac/ax, 2.4 GHz or 5 GHz
USB Host
USB 2.0 for connecting a USB conferencing peripheral;
USB 3.0 for connecting a USB conferencing peripheral
USB Device
USB 3.0 for computer console (installer setup and firmware update)
HDMI Output
HDCP 2.2, EDID, CEC;
Supports management of HDCP and EDID
Video
Input Signal Types
AirMedia;
Simultaneous display of up to four sources with AirMedia Canvas
Maximum Input Resolutions
AirMedia presentation: 1920×1080@30Hz (1080p30);
AirMedia Connect Adapter: 3840×2160@30Hz (4K30)
NOTE: All video inputs will be scaled to the selected HDMI output resolution.
Output Signal Types
HDMI (DVI compatible4)
HDMI Output Resolutions
1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×800@60Hz,5 1366×768@60Hz,5 1440×900@60Hz,5 1600×900@60Hz,5 1600×1200@60Hz, 1680×1050@60Hz,5 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60), 3840×2160@30Hz (2160p30), 3840×2160@50Hz (2160p50), 3840×2160@60Hz (2160p60)
NOTE: All video inputs will be scaled to the selected HDMI output resolution.
Background & Logo File Supportac
JPEG, PNG
Audio
Input Signal Types
AirMedia
Output Signal Type
HDMI
Input/Output Format
2 channel LPCM
NOTE: Audio input signals are passed to the output without any processing. Volume control capability requires a display device with discrete volume, up, down, and mute commands available via CEC, IP, IR, or RS‑232.
AirMedia Software1
OS Support
Apple® iOS®, Android™, Windows 10, Windows 11, macOS®, Chrome OS™
Video Frame Rate
Up to 30 fps, audio supported
NOTE: Audio is not supported on Android devices.
Output Resolutions
640×480@60Hz, 800×600@60Hz, 1024×768@60Hz, 1280×720@50Hz (720p50), 1280×720@60Hz (720p60), 1280×800@60Hz, 1366×768@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1080@50Hz (1080p50), 1920×1080@60Hz (1080p60)
NOTE: All video inputs will be scaled to the selected HDMI output resolution.
Bitrate Peak
0.25 to 8.5 Mbps, variable depending on content complexity
Bitrate Average
1.4 Mbps typical
NOTES:
- • The bitrate for Apple native mirroring may deviate from above depending on the OS version and content.
- • The AirMedia Extension for the Google Chrome browser relies on web technologies for screen sharing that are built-in to the web browser. Performance variations with motion video (quality and frame rate) may occur based upon the encoding capabilities of the Chrome OS device and the nature of the content being displayed (i.e., high-motion video).
Audio Format
Stereo
Wireless Conferencing
OS Support (AirMedia Application)
Windows 10, Windows 11
OS Support (AirMedia Connect Adaptor)
Windows 10, Windows 11, macOS 11 or later
Supported Conferencing Services
Microsoft Teams software;
Zoom software
Supported Conferencing Peripherals
For a list of supported conferencing peripherals, refer to OLH 1001764.

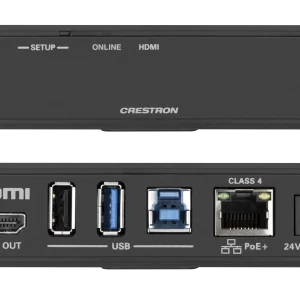

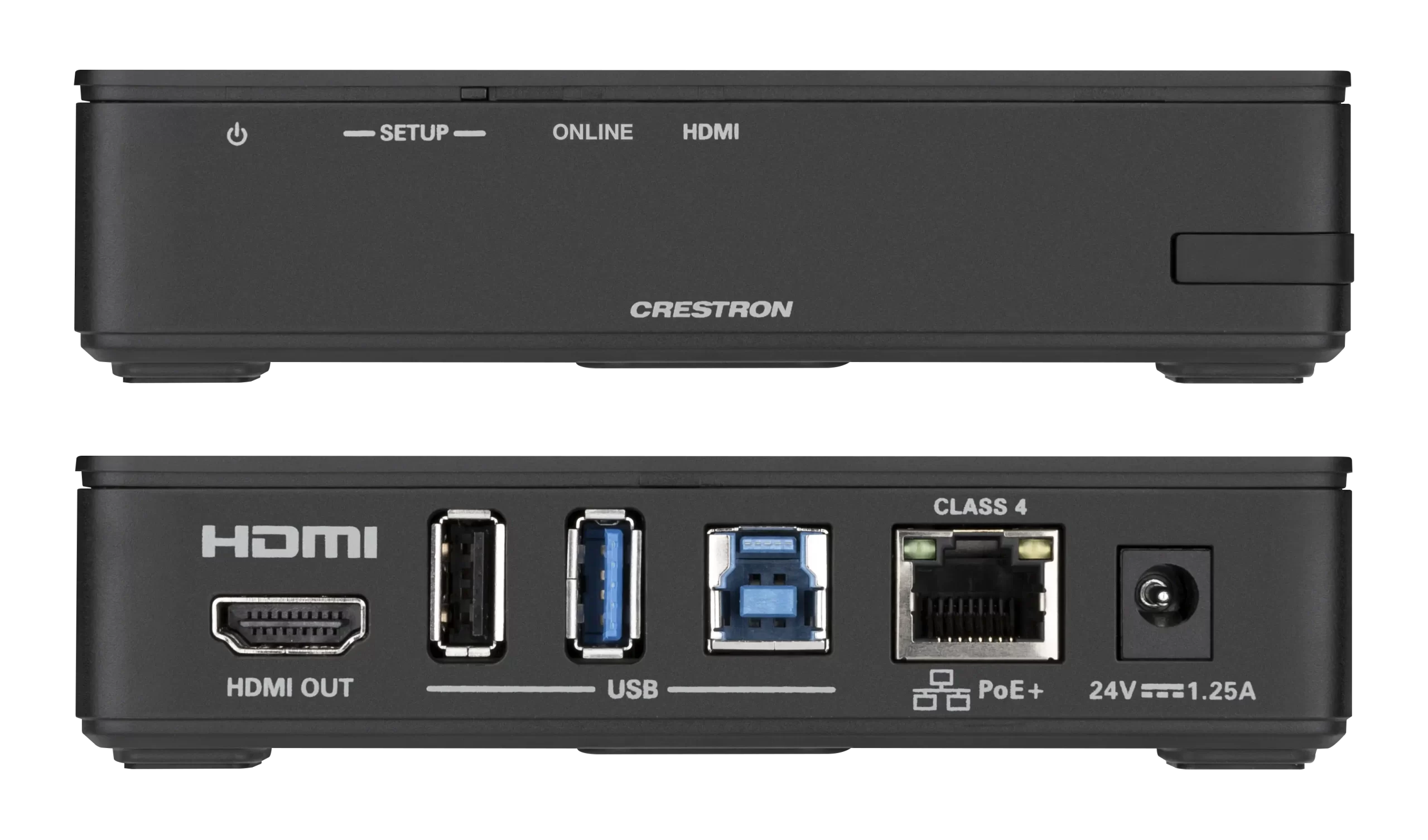

Connectors
microSD
For future use
HDMI OUTPUT
(1) HDMI Type A connector;
HDMI digital video/audio output
(DVI compatible4)
USB
(2) USB Type A connectors;
For future use
(1) USB Type B connector;
USB 3.0 device port for computer console
LAN PoE+
(1) 8-pin RJ-45 connector;
100Base-TX/1000Base-T Ethernet port and PoE+ Class 4
24VDC 1.25A
(1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW‑2412WU power pack sold separately
Controls and Indicators
PWR
(1) White LED, indicates operating power supplied via the local power pack or PoE+
RESET
(1) Recessed push button for hardware reset
SETUP
(1) Recessed push button for onscreen IP address display and for pairing the device to an AM‑TX3‑100;
(1) White LED, indicates pairing status
ONLINE
(1) White LED, indicates control system connection
HDMI OUT
(1) White LED, indicates HDMI signal presence at the HDMI output
microSD
For future use
LAN PoE+
(2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
Power
Power over Ethernet
IEEE 802.3af Class 4 Powered Device
Power Pack (sold separately)
Input: 100-240VAC, 50/60 Hz;
Output: 1.25A @ 24VDC;
Model: PW‑2412WU
Power Consumption
13.5 W (typical)
NOTE: When wireless conferencing is used, the receiver must be powered by either Power over Ethernet+ (PoE+) or a power pack (sold separately).
Environmental
Temperature
32° to 104°F (-0° to 40° C)
Humidity
10% to 90% RH (non‑condensing)
Heat Dissipation
46.0 BTU/hr
Construction
Chassis
Plastic, black finish, with (4) integrated mounting holes, vented sides
Mounting
Freestanding, surface mount
Dimensions
Height
1.21 in. (31 mm)
Width
5 in. (127 mm)
Depth
5 in. (127 mm)
Weight
11.64 oz (330 g)
Choose the model that’s right for you
From more affordable to more advanced models, AirMedia makes it easy to bring wireless presentation to every kind of space.
AirMedia® Receiver

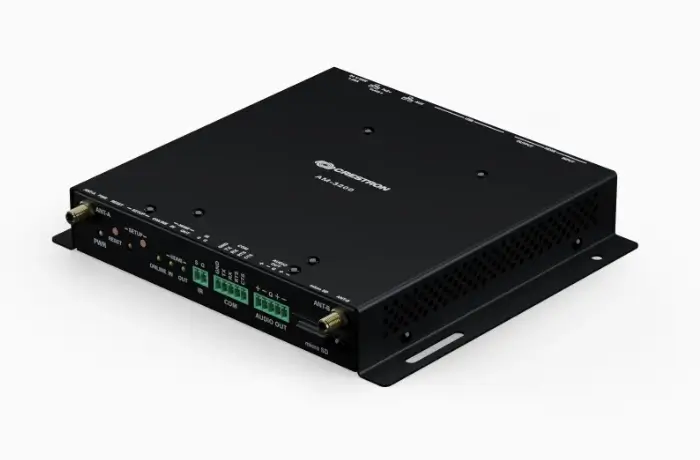

AM-3200
AirMedia® Receiver
AM-3100
AirMedia® Receiver

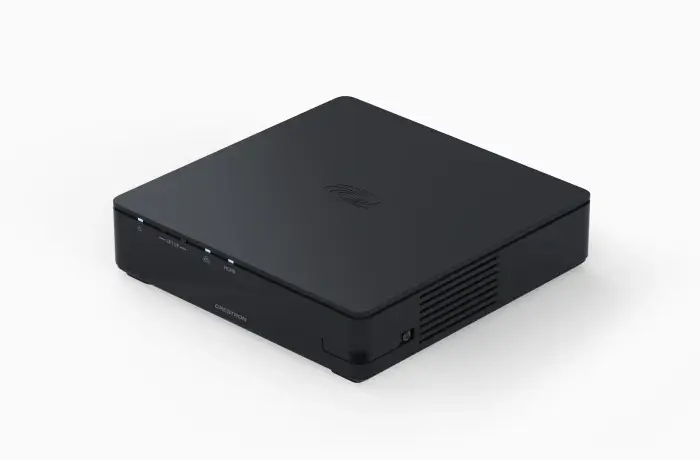

AM-3000
