The N3300 Series is a fantastic solution for almost any streaming application but is ideal for colleges and universities, casinos, hospitality, and government applications. High-quality 4K60 H.26x and Dante AV-H streaming is perfect for transmitting the highest quality video at lower bandwidths. Hybrid learning applications will especially benefit from the significant cost savings of simultaneous dual-stream encoding and local recording to an external USB 3.0 drive.

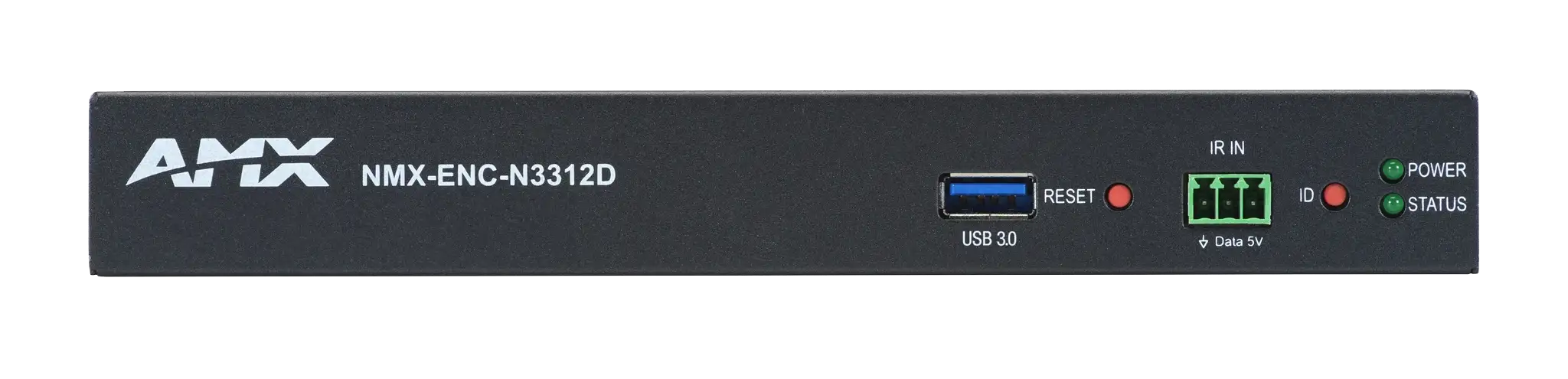

NMX-ENC-N3312D
4K60 H.26x/Dante AV-H & H.26x Dual-Stream Encoder
The AMX SVSI NMX-ENC-N3312D Encoder delivers the highest quality 4K60 H.26x and Dante AV-H video content at the lowest bandwidth. This extends the reach of SVSI 4K60 networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile device applications.
In addition to transmitting HDCP content to N3300 decoders, it also features recording of video to a USB 3.0 external drive, video preview images viewable from the built-in web interface or from a touch panel, and enhanced support for high-security networks. N3300 Encoders simultaneously output up to 4K60 H.26x or Dante AV-H on the primary stream and a high-compatibility H.26x secondary video stream to provide design flexibility and the most compatible options for remote viewing or recording.
The NMX-ENC-N3312D supports Dante AV-H, a standard for AVoIP devices created to allow for the interoperability of multiple devices on the network. With Dante AV-H, the NMX-ENC-N3312D is compatible with Dante Studio, a suite of software tools for PC, that allows you to monitor or bring video directly into UC, recording, production, or streaming applications without the need for additional hardware. Dante Controller handles all device routing, naming and configuration, while Dante Domain Manager provides IT-level management over device organization, user access, multiple subnet coordination and complete audit logs for every endpoint and user.
Additionally, the H.264 stream generated by the NMX-ENC-N3312D is compatible with N3000 series decoders, N2600S decoders, and the NMX-WP-N3510 Windowing Processor.
Moving 4K60 video to or from the Cloud just became a lot easier with the AMX SVSI NMX-ENC-N3312D Encoder.
Common Applications
Features
- High-quality 4K60 H.26x or Dante AV-H primary stream
- High-compatibility H.26x secondary stream
- Audinate® Dante AV-H support of up to 4K60 resolutions
- Video Preview viewable from the built-in web interface or from a touch panel
- Dante Audio
- USB 3.0 video recording capability
- Support for high security networks
- PoE+ powered with low-power mode for energy savings
Specifications
| Video Inputs | (2) HDMI |
| Video Outputs | Network video over Ethernet via RJ45 port, HDMI Loop-Out |
| Video Resolution Support | Supports most common resolutions up to 4096 x 2160 - Reference the user manual for specific resolution support. |
| Audio Inputs | Embedded audio on HDMI or Analog Stereo (Balanced) |
| Audio Outputs | Network PCM audio or Dante Audio over Ethernet via RJ45, HDMI Loop-Out |
| Ports | +12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video loop-out, (2) HDMI video input, USB-C port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel) |
| Environmental | Operating Temperature: 32° F (0° C) to 104° F (40° C) Operating Humidity: 10% to 90%, non-condensing Heat Dissipation: 85 BTU/hr |
| Dimensions (H x W x D) | 1 1⁄6” x 7 7⁄8” x 5” (26.6mm x 200mm x 127mm) |
| Product Weight | 1.41 lbs. (Approx. 0.45kg) |
| SKU Numbers | AMX-N33E001 |
